Specialized

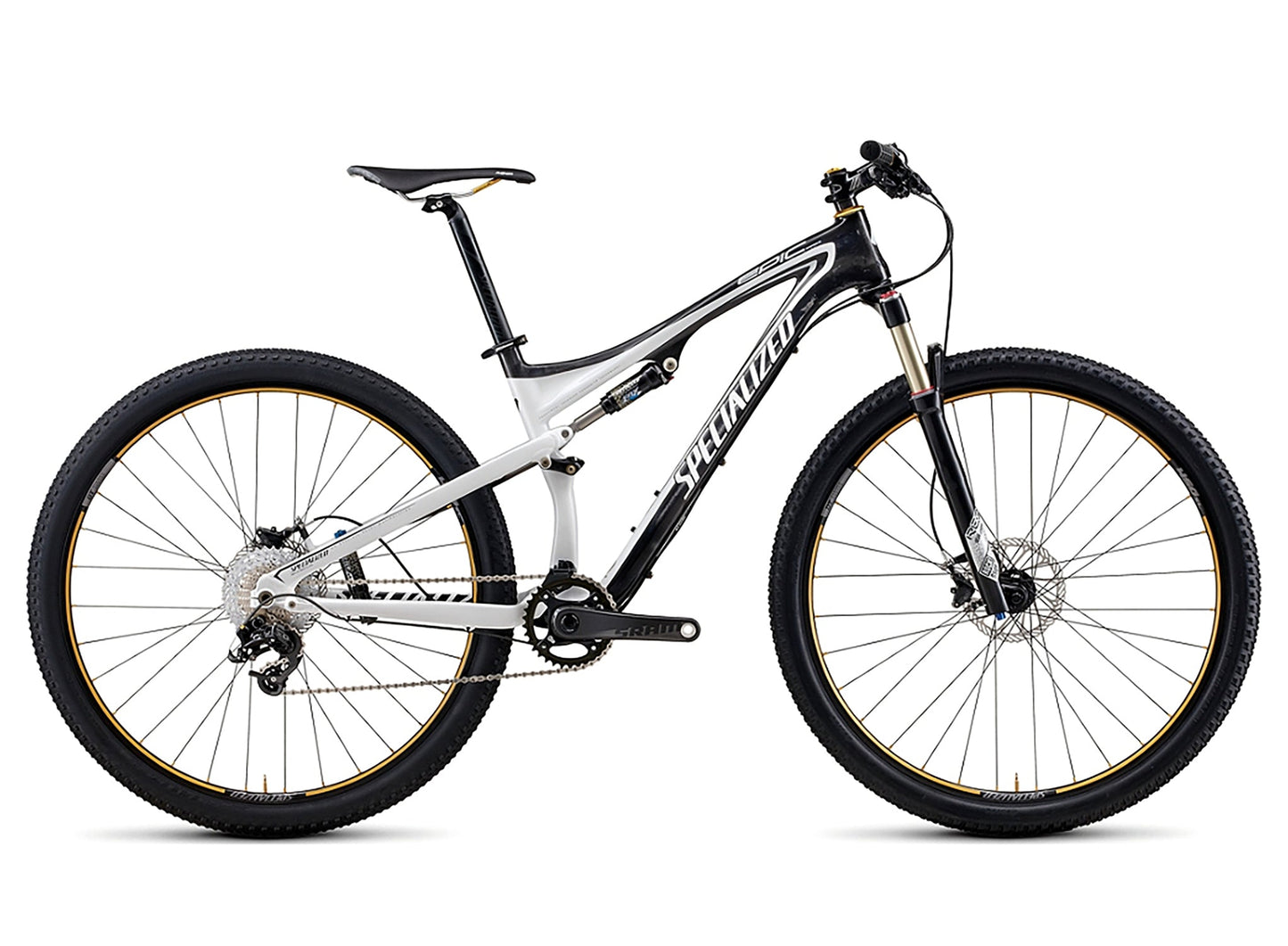

Specialized Epic FSR Expert Carbon EVO R 29 White/Carbon

Specialized Epic FSR Expert Carbon EVO R 29 White/Carbon

€3.198,99 EUR
€3.999,00 EUR €3.198,99 EUR
Sale Ausverkauft
inkl. MwSt.
Größe
RAHMEN
FACT 9m carbon front triangle, 29 geometry, FACT IS construction, gussetless TT S/M, M5 aluminum chainstays &; seatstays, tapered HT, carbon PF-30 BB, 142mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel
FEDERBEIN
Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm, 29er hose length
GABEL
Custom RockShox Reba 29 w/Brain, inertia valve damper, air spring, tapered alloy steerer, Brain Fade and rebound adj., QR, 100mm travel
STEUERSATZ
1-1/8 and 1-1/2 Threadless, Campy style upper with 1.5 lower, cartridge bearings
VORBAU
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
LENKER
S-Works XC Carbon flat bar, uni-directional carbon, 680mm wide, 8 degree back sweep, 31.8mm
LENKERGRIFFE
Specialized lock-on, S/M: Grappler, Other: Rocca
VORDERRADBREMSE
Custom Avid Elixir CR SL, hydraulic disc, tool-less pad contact &; reach adj., alloy backed semi-metallic pads, stainless hardware, S/M: 160mm, L/XL: 185mm rotor
HINTERRADBREMSE
Custom Avid Elixir CR SL, hydraulic disc, tool-less pad contact &; reach adj., alloy backed semi-metallic pads, stainless hardware, 160mm rotor
BREMSHEBEL
Custom Avid Elixir CR SL, hydraulic disc, tool-less adj. reach and pad contact, alloy lever blade
UMWERFER
Custom Specialized EVO XC DMD chain guide for 1x10
SCHALTWERK
SRAM X.0, 10-speed, short cage
SCHALTHEBEL
SRAM X.9, 10-speed, aluminum trigger
KASSETTE
Shimano HG81, 10-speed, 11-36t
KETTE
KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
KURBELSATZ
Custom SRAM Carbon S-2200, 34t single ring, PF-30, removeable spider, S: 170mm, others: 175mm
KETTENBLÄTTER
34t 7050-alloy
BOTTOM BRACKET
SRAM PF-30, OS press-in bearing, sealed cartridge
PEDALEN
Resin Test Ride Pedals with toe clips, CEN std.
FELGEN
Custom DT Swiss X450SL, 29 rim, 24mm w/ eyelets, 32h
VORDERRADNABE
Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 32h
HINTERRADNABE
Specialized Hi Lo 142+ disc, laser-etched logo, double sealed cartridge bearing, QR, 32h
SPEICHEN
DT Swiss Competition 1.8/1.6mm stainless
VORDERREIFEN
S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual compound, 29x1.95
HINTERREIFEN
S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual compound, 29x1.95
INNER TUBES
Ultralight presta valve
SATTEL
Specialized BG Phenom Comp, hollow Cr-Mo rails, 143mm width
SATTELSTÜTZE
2014 butted alloy, single bolt setback, 30.9mm, 400mm
SATTELSTÜTZKLEMME
36.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, for carbon frame
ANMERKUNGEN
Protective clear coat, derailleur hanger, reflectors, owners manual

Technische Änderungen vorbehalten.



Size Sm Med LG XL
Seat Tube Length - Center to Top 394mm 424mm 463mm 520mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Top Tube Length (Actual) 527mm 559mm 584mm 607mm
Chainstay Length 448mm 448mm 448mm 448mm
Bottom Bracket Height - Low Setting 331mm 331mm 331mm 331mm
Seat Tube Angle (Actual) - Low Setting 69.5° 69.5° 70° 70°
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74°
Head Tube Angle - Low Setting 70.5° 70.5° 70.5° 70.5°
Wheel Base 1075mm 1109mm 1136mm 1163mm
Standover Height 755mm 766mm 775mm 790mm
Head Tube Height 90mm 110mm 120mm 140mm
Handlebar Width 680mm 680mm 680mm 680mm
Stem Length 75mm 90mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 400mm 400mm 400mm 400mm
Stack 586mm 605mm 614mm 633mm
Reach 386mm 415mm 438mm 458mm
Ground-Top 917mm 936mm 945mm 964mm
TT is measured horizontally from center of HT to center of ST
*Not all sizes available in all markets.


  • Super light FACT IS 9m carbon 29er-specific frame with M5 alloy rear triangle and sealed cartridge bearing pivots delivers strength, rigidity, and suppleness to create an uncompromising 100mm-travel Competitive XC bike
  • Specialized and Fox blend their brains to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring and adjustable rebound for World Cup - and local trail - domination
  • Custom RockShox Reba 29 100mm fork with Brain features rebound and Brain Fade adjustments to dial in the perfect platform for 29er bliss
  • World-class, featherlight S-Works Renegades are 2Bliss Ready and offer maximum speed and control in hardpack or intermediate XC conditions: 1.95 front &; rear
  • S-Works FACT 680mm carbon flat bar is feather light and seriously stiff for XC finesse and power
  • Custom Specialized Evo XC DMD 1x10 chain guide to keep chain solidly in place while shifting through 10 speeds
Vollständige Details anzeigen
